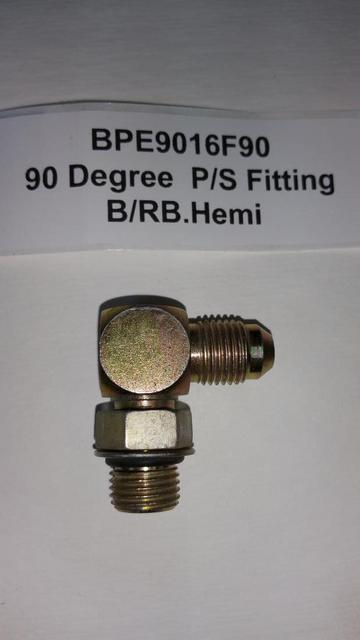

BPE Power Steering Box Fitting 90-Degree (9016F90)

Reg. Price:
Sale Price:

Pressure Line #5.... 5/16" 90 Degree Fitting


This Is Our BPE "Hi-Side 90-Degree Power Steering Box Nipple / Fitting".  Which Threads Directly Into Your PS Box's High Pressure Line Connection Port/Pressure Control Valve. This Particular 90-Degree Fitting, Is Normally Only Used On Hemi, Max Wedge, & Other Vehicle & Engine Combinations, That May Have Exhaust Manifold Or Header Clearance Issues, That Cause An Issue With Your PS Hard Line's Connection At The Steering Box!!
These Work ONLY With The Saginaw Style Pumps, & NEVER Came With New / Reman PS Boxes, & Are NEVER Returned, When You Send Your To Be Built!!

#5     5/16"

NOTE:  *1968 and earlier used pressure lines that were #4 ...1/4" male fitting/ For 90 Degree #4 Fitting, Order 9016F4-90

*1973 and later did not have a fitting in the Power Control Valve. Pressure lines screwed directly into Power Control Valve

*This fitting will work in the 1973 and later steering boxes also

* We also Have a #6.....3/8" Available, Order 9016F6-90
