This Is Our Bolt -in/Drop-in/Resembles Original Style Extreme Heavy Duty Aluminum Radiator Assembly for Hell Cat Gen III Hemi Installations. It comes complete with Custom Aluminum Shroud with HD SPAL Fans, Electronic Fan Controller and Sender, with Air By Pass flaps already assembled and installed. Just wire your controller and mount your sender and you are done. Radiator Core support Opening is 26". Comes with our "State of the Art" 2 Row X 1 1/4" Core for Excellent Cooling Ability. The Top Tank Resembles the Old Style Blackstone Tank found on most Older Muscle Cars.
Works with:2015-2023 6.2L Hell Cat, Red Eye and 7.0L Hellephant.
Not designed to work with any other Gen III Hemi except Hell Cat Based Engines. Will not work on 2033-2023 5.7L Truck & car Engines, 2005-2010 6.4L Engines, 2011-2023 6.4L Engines
70-72 B BODY, 70-74 E BODY 26" WITH TRANSMISSION COOLER
Proudly Manufactured in the USA by Griffin Radiator for Bouchillon Performance Engineering
1-Fits 1970-1972 B-Body & 1970-1974 E-Body with 26" Radiator Support (Core Support) Opening...measure left to right for proper opening width
2-Will Not Work with 2003-2008 DR 5.7L Dodge Truck Engines, which had Right Side Lower Radiator Hose and Left Side Thermostat Outlet Nipple
3-We do Not have Formed Fitted Hoses, as of yet, for this application.
4-Use S6074X Stainless Overflow Tank to Complete Installation (Not Included)
5-On A/C Applications, use BPE6665 Trinary Switch to control fan operation when A/C is on. It, along with Electronic Fan Controller on this Radiator will only allow Fan to run when required. Fan Operation, generally is not needed at 50 mph highway speeds or when A/C Compressor is First Cut on.
6-This Radiator is generally used on Automatic Transmission Vehicles, since there is a Transmission Cooler Built In
7-Inlet Nipple Diameters 2.00" Bottom Left (Drivers Side Lower) & Outlet Nipple Diameters 1 3/4" Top Right (Passenger Side Upper)

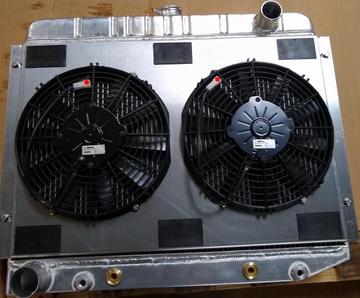

8-Picture of Radiator is an Exact Pic of Actual 9D-19523-18HC Radiator Assembly!
9-61T798 Thermostat is recommended for all Gen III Hemi Installations that are a Resto Mod, Street Performance of Street Rod Application.
