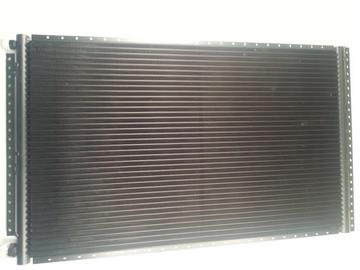

18"W X 16"H Multi Pass Condenser. Replaces Original Serpentine Condenser. 30-40% More Efficient than Serpentine.
Dimensional Size: 18" Wide X 16" Tall
NOTE: 1-Larger #8 Fitting Is always installed on top.
2-Smaller #6 Fitting is always installed at bottom. #6 Outlet fitting goes to Receiver Dryer .
3-Upon Installation, Always add 1/2-3/4 ounce of PAG 100 to Condenser Before Installation.
4-Condenser will be Under Nitrogen Pressure when caps are removed
5-Always fit largest condenser to opening in radiator support for maximum efficency and cooling
6-Some triming may be necessary at corners of Condenser Mounting Flanges for Fit on Some E Bodies and B Bodies.
7-Always mount Condenser as high as possible and as close as possible to radiator support opening.
